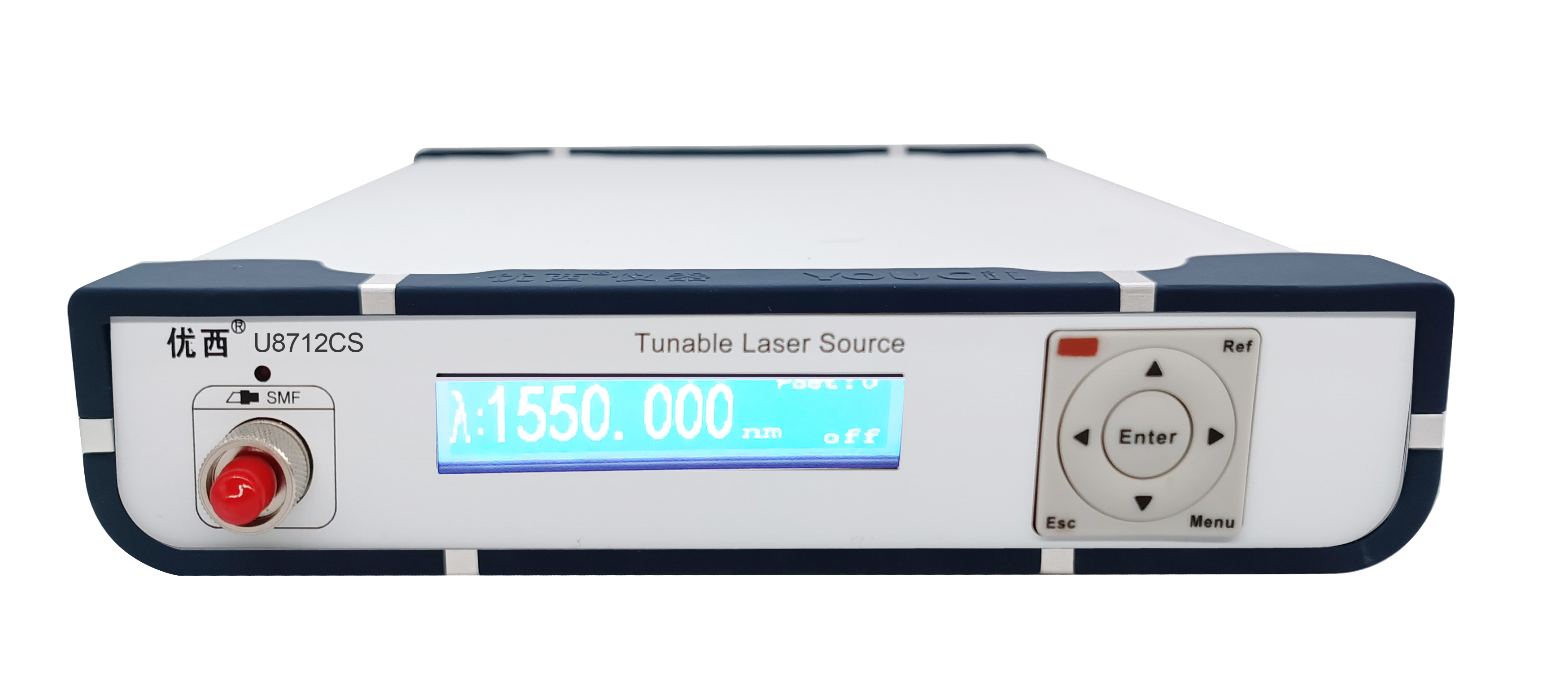

O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm

Brand Name : YOUCII

Model Number : UC8711

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 pcs+ per year

Delivery Time : 10 work days

Packaging Details : cartons

Certification : CU,IOS

Wavelength Tuning range (nm) : 30~35 nm

Tunable Band Range (nm) : 1260~1360

Wavelength resolution : 1.0 pm

Absolute wavelength accuracy : ±10 pm, Typ. ＜ 5 pm

Relative wavelength accuracy : ± 5 pm, Typ. ± 2 pm

Side-mode Suppression ratio : ≥ 45 dB

Dimensions : 235 mm W, 55mm H, 165 mm D

Contact Now

O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm


UC8712 Tunable Laser Module offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It’s specifically designed for fast sweep fiber grating sensor testing.
UC8712 module can be connected to a PC with a USB cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide O band,C band, L band, or C + L band options. Module control software is also included on purchase. The module can also be integrated into any requested products system with RS232 interface controls and an output triggered BNC port.

Specification

Model #UC8712
Band OptionOCLCL
Center Wavelengths Available (nm)1280/1310/1340155015901570
Wavelength Tuning range (nm)30~35 nm40~45 nm40~45 nm80~85 nm
Tunable Band Range (nm)1260~13601525~15681566~16101525~1610
Output Power≥ 5dBm≥ 13dBm≥ 10dBm≥ 7dBm
Wavelength resolution1.0 pm
Absolute wavelength accuracy±10 pm, Typ. ＜ 5 pm
Relative wavelength accuracy± 5 pm, Typ. ± 2 pm
Wavelength repeatability±2 pm, Typ. ± 1 pm
Wavelength stability≤ ± 2 pm
Tuning speed≤0.002 s per step
Power stability± 0.01dB, 15min；±0.05,1 hour；±0.1 dB, 24 hours.
Power repeatability± 0.05dB
Power linearity± 0.3dB
Power Over wavelength Ripple0.3dB typ., 0.5dB max.
Side-mode Suppression ratio≥ 45 dB
Output optical interfacePM, FC/APC or FC/PC connector
InterfaceRS232 or USB
Power3.3 V; 4.5A
Dimensions235 mm W, 55mm H, 165 mm D
Weight1.0 kg



O/C/L/CL Tunable Laser Source Sweep Modules With Wavelength Resolution 1.0 Pm
