Name: Single Channel Programmable Optical Attenuator With Power Locking Output
Brand: G-LINK
Price: 1 USD

Brand Name : G-LINK

Model Number : CETC-SGS-IA-SP

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5pcs+per month

Delivery Time : 15 work days

Packaging Details : cartons

Optical fiber type : Single mode

Operating wavelength range : 1310/1490/1550/1625nm

Calibration Wavelength : 1310/1550nm

Speed of attenuation regulation : 0.1~ 50 dB/s

Maximum Input : +20dBm

storage temperature : -30 ~ +80℃

Contact Now

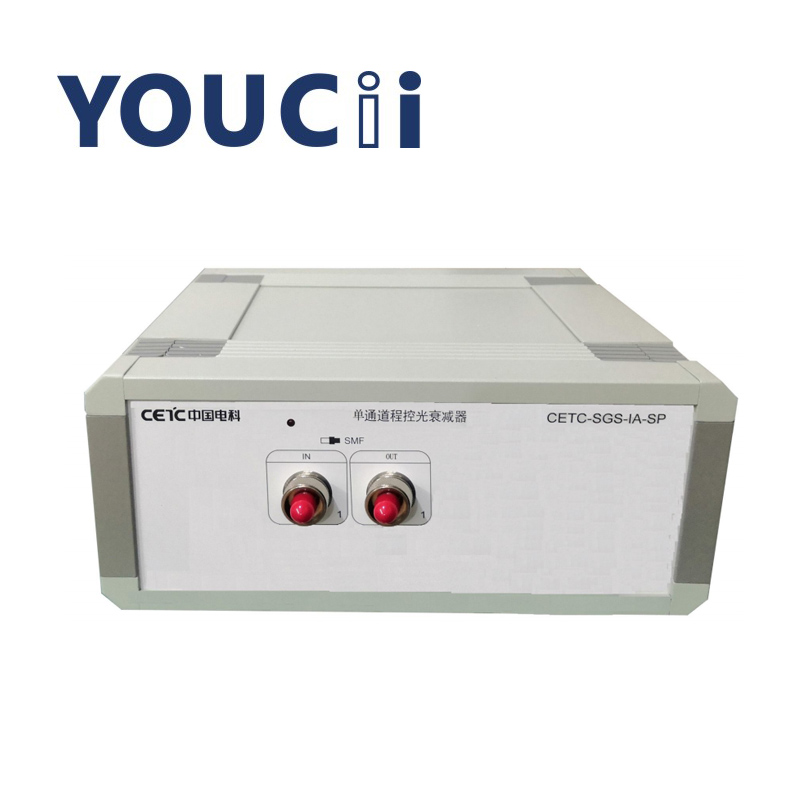

Single Channel Programmable Optical Attenuator With Power Locking Output

Product specification

Product model	CETC-SGS-IA-SP
Optical fiber type	Single mode
attenuation range	0 ~ 40 dB
Operating wavelength range	1310/1490/1550/1625nm
Calibration Wavelength	1310/1550nm
Insertion loss	≤ 1.2dB
Application Fiber Type	9/125 um Single mode
Connector Type	FC/UPC Connector
Attenuation accuracy	≤±0.1dB typ. (0 ~ 40 dB)
repeatability	≤±0.02 dB
Average power setting time	1~1000 ms
Power control follow - up stabilization time	100ms
Speed of attenuation regulation	0.1~ 50 dB/s
Return loss	＞40 dB
Maximum Input	+20dBm
operating temperature	0 ~ +40℃
storage temperature	-30 ~ +80℃
Power	100~240 V
