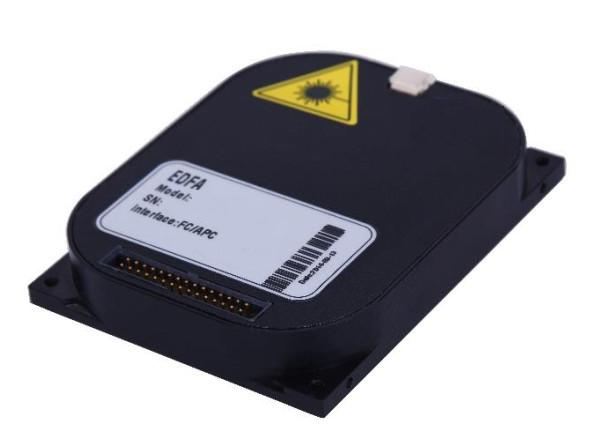

1530nm Single Channel Erbium Doped Fiber Amplifier EDFA

Model Number : U8331MA-30

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 pcs+per month

Delivery Time : 15 work days

Packaging Details : Carton

Certification : CU,IOS

Product name : Erbium Doped Fiber Amplifier

min Working wavelength : 1530nm

Input isolation : 30dB

Optical interface type : FC/APC,900um,0.5M

Dimensions : 90x70x15 mm

Working voltage : 100~220V AC power adapter

Contact Now

U8331MA-30 single channel EDFA

Product Model	U8331MA-30
Parameter	Min	Typ	Max	Units
Working wavelength	1530		1565	nm
Output Power			0	dBm
Input power	-40		-10	dBm
Gain			30	dB
Noise Figure (@-30dBm input)		4.5	5.0	dB
Output power stability		±0.05	±0.1	dB
Input isolation	30			dB
Output isolation	30			dB
Input pump leak			-35	dBm
Output Pump Leak	0		-45	dBm
return loss			-45	dB
Polarization dependent gain			0.3	dB
Polarization Mode Dispersion			0.5	ps
Operating temperature	0		45	℃
Storage temperature	-40		80	℃
Power consumption			25	W
Working Mode	Automatic Gain Control
Optical interface type	FC/APC,900um,0.5M
Working voltage	100~220V AC power adapter
Dimensions	90x70x15 mm

FAQ
Q: Are your company a trading one or a factory?
A: We are a fcatory in Guangdong. Our company has a professional foreign trade sales team and an experienced technical support team. We are supplier for Light source, optical power meter, optical attenuator, optical switch and BERT, DCA, CDR.
Q: What is the price term?
A: FOB ShenZhen
Q: What’s the warranty time?
A: 12 months after shipment date.
Q: How to place order?
A: Talk to service staff, confirm machine details, and then place order.
