High Power PD External Optical Power Meter High Precision +25 ~ -65dBm

Name: High Power PD External Optical Power Meter High Precision 25 65dBm
Brand: YOUCii
Price: 1 USD

Brand Name : YOUCii

Model Number : U8820+2*U88203

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A

Supply Ability : 10pcs+per month

Delivery Time : 21 work days

Packaging Details : cartons

Optical fiber type : Single-mode fiber

unit : dB dBm xW

Power Range : +25~-65dBm

Sensor Element : InGaAs

Linearity : ≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm)

Communication Interface : RS232 / USB / RJ45

Dimensions : 245 mm W, 105 mm H, 320 mm D

Contact Now

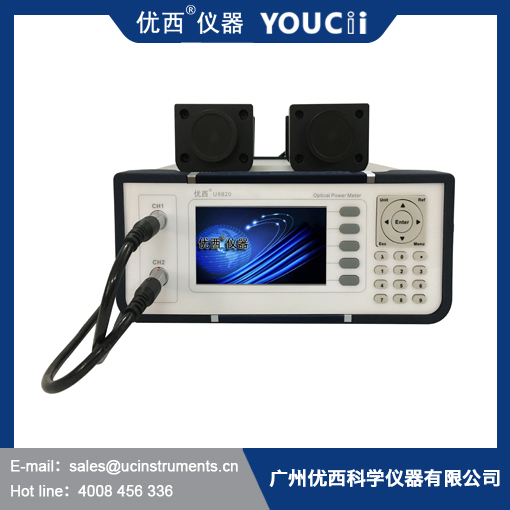

High Power PD External Optical Power Meter High Precision +25 ~ -65dBm

Optical power meter is the most basic measurement parameter in optical fiber communication system, and it is one of the most important parameters to evaluate the performance of optical terminal equipment and the transmission quality of optical fiber. It is specially used to measure absolute optical power or relative optical power loss through a section of optical fiber.

U8820+2*U88203 is widely used in communication trunk laying, equipment maintenance, scientific research and production. Superior performance, economical and practical.

The U8820+2*U88203 Optical power meter measuring system has the characteristics of high performance, small size, fast start-up and affordable price.

Others, YOUCii offers a choice of low power, high power, single channel and dual channel optical power meter probes, as well as up to 64 channel mainframe systems.

Index	U8820 + 2xU88203
Sensor Element	InGaAs
Power Range	+25 ~ -65dBm
Wavelength Range	850 ~ 1700 nm
Power sampling period(rate)	100 us(10KHz)
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜0.02 dB Typical
Linearity (power)	≤± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Resolution	0.001dB
Return Loss	＞ 40 dB
Communication Interface	RS232 / USB / RJ45
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 Year
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	4.0 kg

High Power PD External Optical Power Meter High Precision +25 ~ -65dBm
