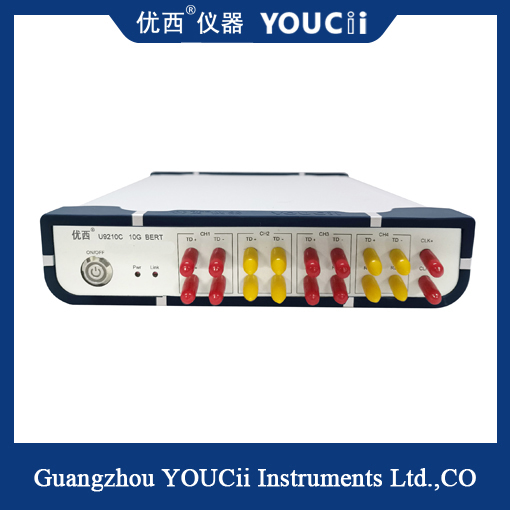

4 Channel BERT Tester 10G Full Rate Error Meter 0.622 To 11.7 Gbps BERT

Brand Name : YOUCii

Model Number : U9210C

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5pcs+per month

Delivery Time : 21 work days

Packaging Details : cartons

Certification : CU,IOS

Data rate : 0.622~11.7Gbps

Code type : PRBS7,PRBS9,PRBS15,PRBS23,PRBS31

Data output jitter (RMS) : 1.5(10.3125G)

Data signal input sensitivity : 50mVpp

Signal differential output amplitude : 200~1000mV

Data output eye graph crossing point (difference) : 49~52%

Contact Now

4 Channel 10G Full Rate Error Meter(0.622 To 11.7 Gbps)Bert

Measurement of error detector electrical eye map:

2.5Gbps

4 Channel BERT Tester 10G Full Rate Error Meter 0.622 To 11.7 Gbps BERT

6.25Gbps

4 Channel BERT Tester 10G Full Rate Error Meter 0.622 To 11.7 Gbps BERT

10.3125Gbps

4 Channel BERT Tester 10G Full Rate Error Meter 0.622 To 11.7 Gbps BERT

U9210C 4-channel 10G full rate error meter technical specification:

No. parameter minimum

typical

maximum

unit
1

Data rate

 0.622 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7 11.7 Gbps
2

Number of channels

4 (4-channel electrical port, PG and ED supported)
3

Code type

 PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4

Rise and fall time (20% to 80%)

 18 23 ps
5

Pattern reversal

Supports signal reversal at the transmitting and receiving ends
6

Signal differential output amplitude

 200 600 1000 mV
7

Data output jitter (RMS)

 1.5(10.3125G) ps
8

Data input/output interface

Differential, AC coupling, 50 ohm impedance, SMA
9

Clock output

 100 156.25 156.25 MHz
10

Data signal input sensitivity

 50 mVpp
11

Data output eye graph crossing point (difference)

 49 50 52 %
12

USB HID response time

 10 ms
13

Operating temperature

 10 25 50 °C
14

Operating voltage (AC)

 180 220 250 V

4 Channel BERT Tester 10G Full Rate Error Meter 0.622 To 11.7 Gbps BERT
