Dual Channel Optical Power Meter Small Size +9~-66dBm

Name: Dual Channel Optical Power Meter Small Size 966dBm
Brand: YOUCII
Price: 1 USD

Model Number : U8202M-MINI

Brand Name : YOUCII

Certification : CU,IOS

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T

Supply Ability : 15 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Number of Channels : 2

Communication Interface : RS232

Power sampling period(rate) : 100 us(10KHz)

Application Fiber Type : Standard SM and MM up to 62.5 um core size

Recalibration Period : 2 Years

Power Range : +10 ~ -65dBm

Contact Now

The Dual-Channel Optical Power Meter Has A Small Size +9~-66dBm

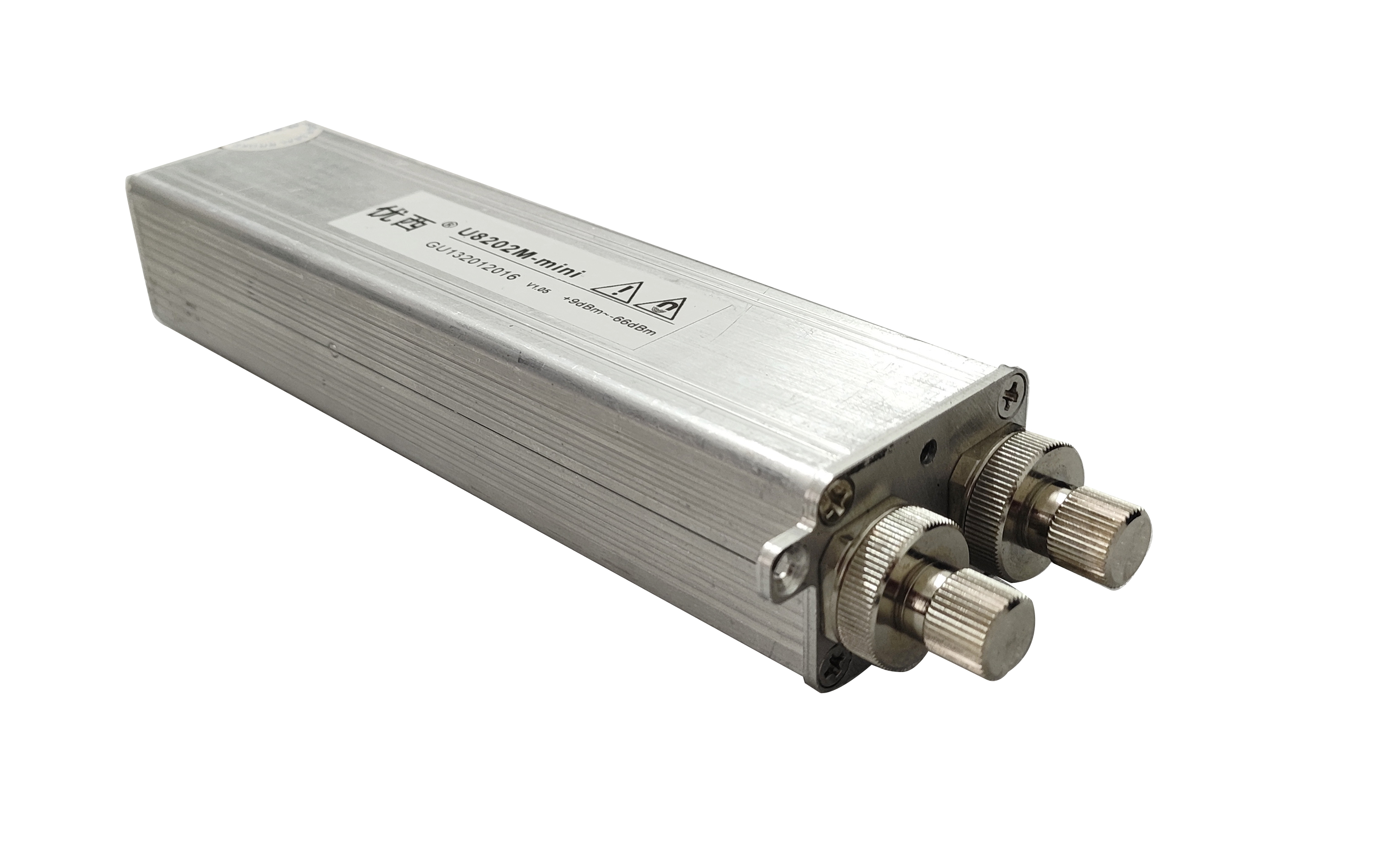

U8202M-MINI Double channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines

Compared with the traditional single-channel optical power meter, the dual-channel optical power meter has the following advantages:

Simultaneous measurement of two optical signals improves test efficiency.

Two different optical signals can be compared or combined for the purpose of analyzing and studying the properties and behavior of light.
More measurement channels can be expanded to achieve multi-channel measurement and further improve test efficiency.

Technical specification

Model	U8202M-mini
Number of Channels	2
Power Range	+10 ~ -65dBm
Wavelength Range	850 ~ 1700 nm
Power sampling period(rate)	100 us(10KHz)
Calibration Wavelength	850/980/1310/1490/1550/1610 nm
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Communication Interface	RS232
Sampling Data Storage	Support online data acquisition and storage for 2 hours and draw power curve
Power Supply	DC5V3A,It is equipped with a 100-240 V AC power adapter
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	100 mm W, 30 mm H, 165 mm D
Weight	1.0 kg
