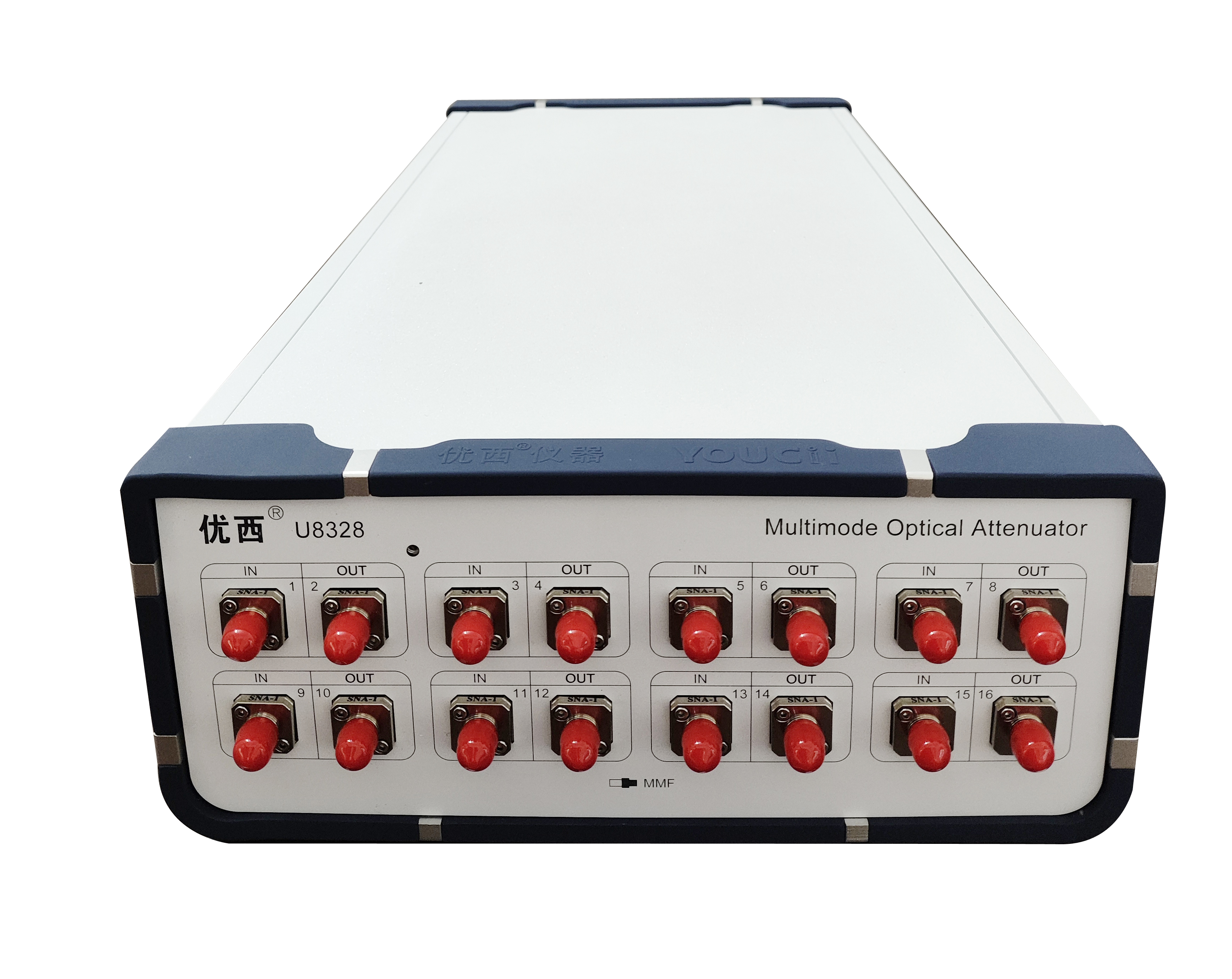

Multi Channel Multi Mode Optical Attenuator Channels Run Synchronously

Name: Multi Channel Multi Mode Optical Attenuator Channels Run Synchronously
Brand: YOUCII
Price: 1 USD

Model Number : U8328

Brand Name : YOUCII

Certification : CU,IOS

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T

Supply Ability : 15 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Attenuator Range : 0~35 dB（40dB Type）

Calibration Wavelength (Option) : 850 nm (908/980 nm selectable)

Insertion Loss : ≤ 1.8 dB Type 1.5dB

Averaging time of monitor PM : 2~1000 ms

Attenuation Transition Speed : 0.1 ~ 33 dB/s

Maximum safe input power : +27dBm

Contact Now

Multi-Channel Multi-Mode Optical Attenuator Channels Run Synchronously

Applications:

Active optical module/Optical Device Test:
In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized.
In the sensitivity measurement of optical receiving module, it provides parallel, fast and accurate optical power attenuation input;
200ms optical power attenuation stability time, greatly improve the test efficiency.
Optical communication network integration test:
Test network transmission performance and network management functions in optical communication network integration.

The optical attenuation and optical power output can be set quickly and accurately, and the optical power attenuation stabilization time is less than 200 ms.
Multi-channel attenuator is set at the same time, and multiple ports are measured simultaneously, which saves a lot of measurement time;
Built-in power monitoring ensures the stability and accuracy of light attenuation;
Simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
Small size, compact structure.

Specification:

Model #	U8324 / U8328
Attenuator Range	0~35 dB(40dB Type)
Calibration Wavelength (Option)	850 nm (908/980 nm selectable)
Insertion Loss	≤ 1.8 dB Type 1.5dB
Fiber Type	50/125um, 62.5/125um MMF
Connector Type	FC/UPC Connector
Attenuation Accuracy	± 0.10 dB (0 ~ 30 dB)
Repeatability	±0.10 dB
Averaging time of monitor PM	2~1000 ms
Settling Time	200ms
Attenuation Transition Speed	0.1 ~ 33 dB/s
Return Loss	> 25 dB
Communication Interface	RS232, USB, RJ45 Control by PC
Maximum safe input power	+27dBm
Recalibration Period	2 years
Operation Temperature	0～ +40℃
Storage Temperature	-30～+80℃
Power	100~240 V
Dimensions	245mm W, 105mm H, 320 mm D
Weight	5 kg
