Handheld Lan WDM Four - Wavelength Light Source And Optical Power Meter

Name: Handheld Lan WDM Four Wavelength Light Source And Optical Power Meter
Brand: YOUCII
Price: 1 USD

Brand Name : YOUCII

Model Number : U8654

Certification : CU,IOS

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T

Supply Ability : 20 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Working mode : light source/optical power meter

Output wavelength/Probe wavelength : 1271, 1291, 1311, 1331 nm

Fiber Type : single mode

Battery duration (h) : 2

power supply : Lithium battery, AC adapter

Automatic shutdown time (min) : 5

Contact Now

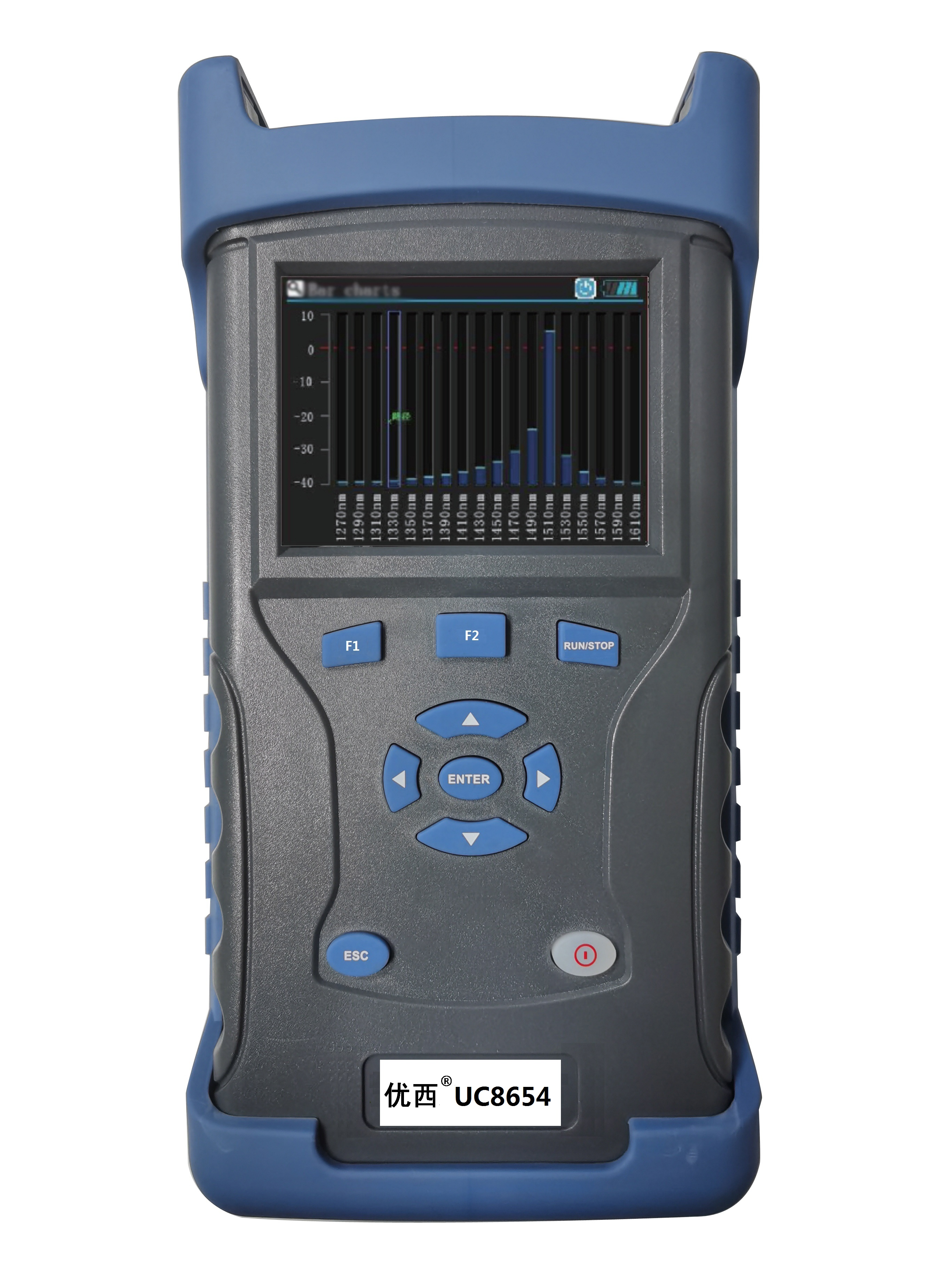

Handheld LanWDM Four-Wavelength Light Source And Optical Power Meter

Product Overview:
U8654 is a hand-held device combining LanWDM four-wavelength light source and corresponding four-wavelength optical power meter, with built-in optical attenuation device to realize adjustable output power of light source.

With highly integrated Mux and DeMux components and high stability driver circuit and high precision optical detection technology, it is specially designed and developed for optical network installation, detection and maintenance, as well as optical communication components production line inspection.

LAN WDM four-wavelength light source and optical power meter can be used together to measure wavelength and power. The optical power meter is used to measure the power of the optical signal, while the LAN WDM four-wavelength light source can provide four different wavelengths of optical signals. By using these tools, the performance of optical communication systems can be evaluated and optimized.

Specifications:

Product model	U8654
Working mode	light source	optical power meter
Output wavelength/Probe wavelength	1271, 1291, 1311, 1331 nm
device type	DFB	InGaAs
Power adjustable/detection range	+5 ~ -5 dBm	+5 ~ -55 dBm
Power stability/detection accuracy	Short time 15 minutes ≤±0.01 dB	5%
Fiber Type	single mode
Board to Board	FC/APC	FC / LC / SC optional
Light output/detection form	Four in one output	One minute and four probes
Display resolution (dB)	0.01
communication interface	Mini USB
power supply	Lithium battery, AC adapter
Battery duration (h)	2
Automatic shutdown time (min)	5
Operating temperature (℃)	-10～+40
Operating temperature (℃)	-25～+70
Overall size (mm)	220×100×75
Weight (excluding batteries)	1Kg

Handheld Lan WDM Four - Wavelength Light Source And Optical Power Meter
