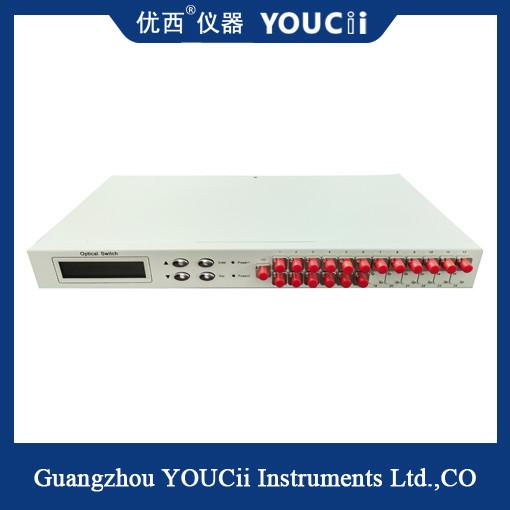

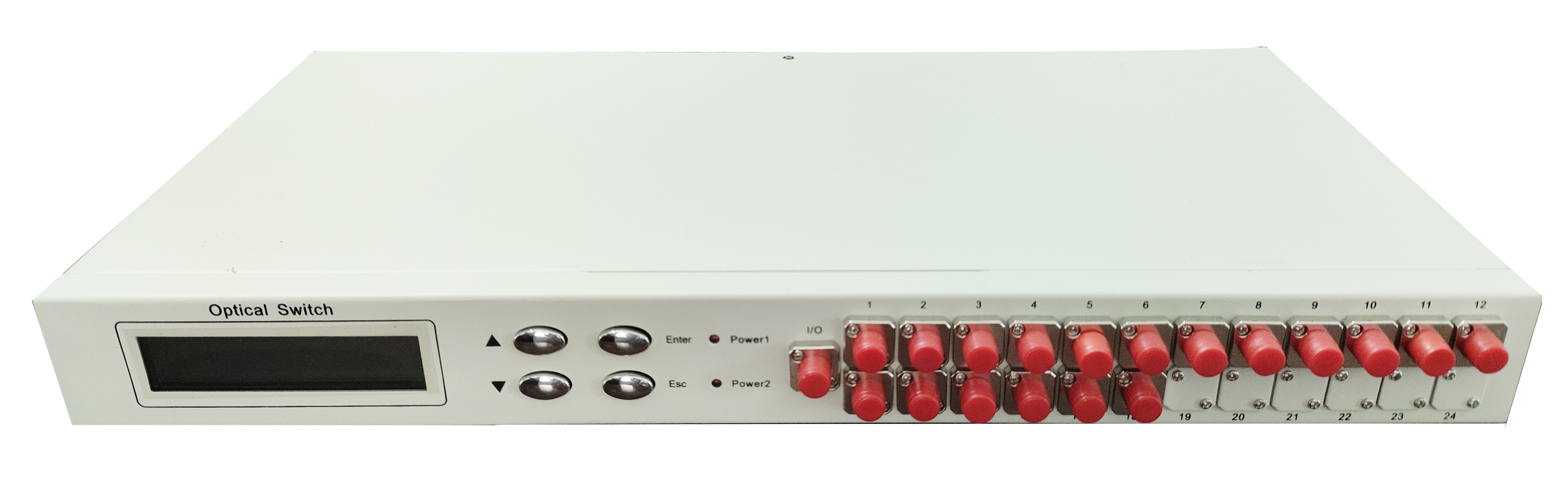

The 18-Channel Rack-Mounted Optical Switch Is Cost-Effective
Product introduction:
Optical switch is a kind of optical path control device, which plays the role of controlling optical path and converting optical path. It plays an important role in optical communication applications. The optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and optical sensing multi-point dynamic monitoring system;
The optical test system is used for optical fiber, optical device, network and field engineering cable testing; Optical device installation and adjustment. The 1 x 19 optical switch switches one input route to one of the 19 output routes.
Product characteristics:
▲ has the advantages of low insertion loss and fast switching speed.
▲ LCD display, very intuitive data display, easy to operate.
▲ can be set automatic scanning, the maximum switching interval is 99 hours, 59 minutes and 59 seconds; You can also set the "start channel" and "End channel" for scanning.
▲ You can set Device address to enable you to use one serial port to control multiple optical switching instruments when serial ports are scarce.
An optical switch is an optical device with one or more optional transmission ports, whose role is to physically switch or logically operate the optical signal in the optical transmission line or integrated optical path.
In fiber optic transmission systems, optical switches are used for conversion of multiple monitors, Lans, multiple light sources, detectors and protected Ethernet. In the optical fiber test system, used for optical fiber, optical fiber equipment testing and network testing, optical fiber sensing multi-point monitoring system.
Technical parameter:
| MODELS | U84118 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.2 dB |
| repeatability | ≤±0.05 dB |
| Return loss | ≥57dB |
| crosstalk | ≥63dB |
| Wavelength dependent loss | ≤0.25 |
| Polarization dependent loss | ≤0.02 |
| Switching time | ≤ 10ms(Adjacent sequential switching) |
| Fiber type | SM(9/125um) |
| Connector form | FC/APC |
| Monitoring port | RJ45,RS-232 |
| Working power supply | AC: 85 ～ 264(50/60Hz) |
| Operating temperature | -5 ～ + 60℃ |
| Storage temperature | -40 ～ + 80°C |
| Chassis type | 19 inch standard 1U rack(483×220×44mm) |
