10Gbps Full Rate Clock Recovery Device 2/4 Frequency Division

Name: 10Gbps Full Rate Clock Recovery Device 24 Frequency Division
Brand: YOUCII
Price: 1 USD

Brand Name : YOUCII

Model Number : U9710A

Certification : CU,IOS

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T

Supply Ability : 7 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Data rate range : 0.155~11.3(Gbps)

Optical input range (determined by module sensitivity) : 3~-15(dBm)

Operating temperature : 85~-40°C

Wavelength range : 800~1600nm

Contact Now

10Gbps Full Rate Clock Recovery Device 2/4 Frequency Division

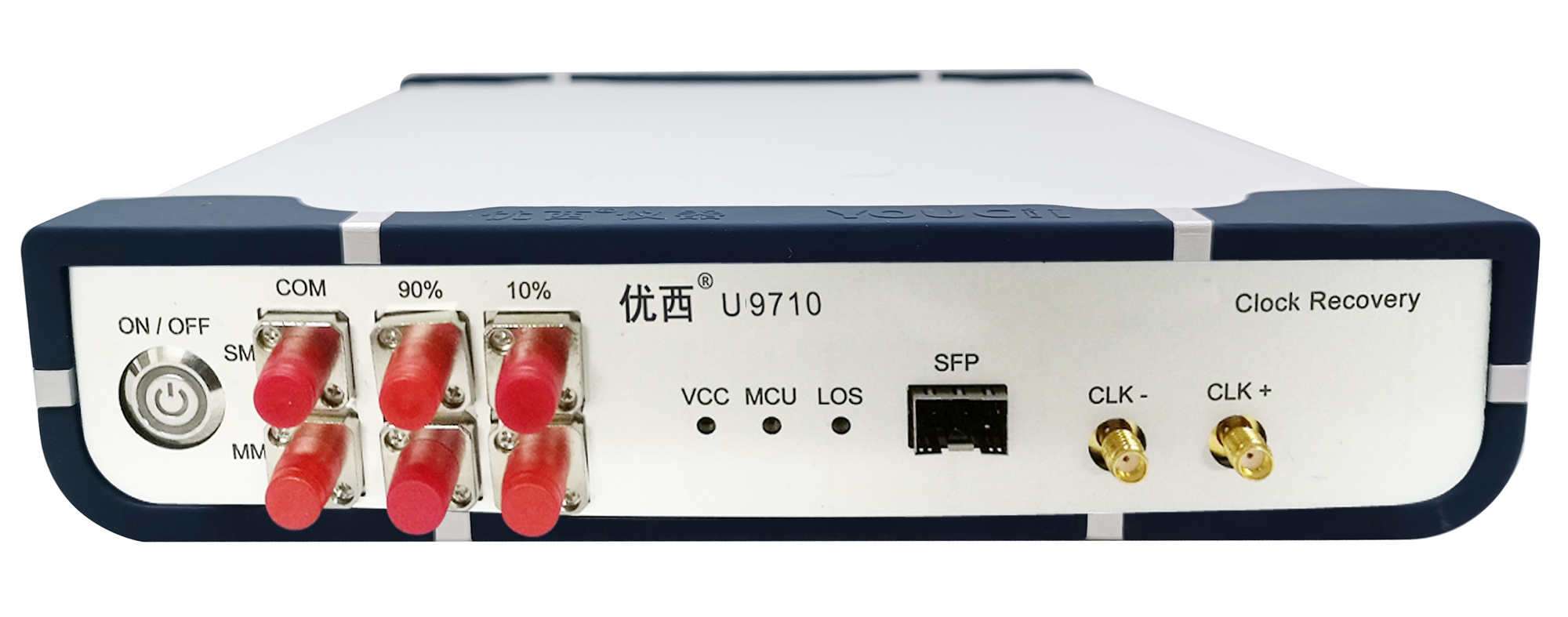

U9710 CDR (Clock Recovery Module ) is mainly used to provide clock recovery signal in the test environment without triggering clock, so as to use the sampling oscilloscope to test the optical eye diagram of the device. The typical application is the testing of optical network equipment or the BOB prodUt in PON application. Because the photometric device itself has no frequency division clock output, it is necessary to recover the clock signal to trigger the sampling oscilloscope when testing the optical eye diagram.

U9710 CDR has a SFP optical port, which is suitable for SFP encapsulated conventional SFP, SFP+, OLT SFP and other optical modules. It only needs the receiving end of the optical module to convert the optical signal to the electrical signal, and then extract and output the clock of the electrical signal. Clock signal is mainly used for the trigger signal of oscilloscope. This device self-adapts to the rate and does not require software configuration.

The 10G clock recovery instrument is mainly used to restore the clock frequency of the signal source to ensure the stability and reliability of data transmission. In some high-speed communication systems and network devices, the data transmission speed is very fast, so a very precise clock signal is needed to ensure that the data is transmitted synchronously. If the clock signal is deviated or unstable, it can result in data loss or transmission errors.

No.	Specifications	Max.	Min.	Unit.
1	Data rate range	11.3	0.155	Gbps
2	Wavelength range	1600	800	nm
3	Optical input range (determined by module sensitivity)	+3	-15	dBm
4	Output recovered electrical clock range	5.65 / 2.825	0.0775/0.03875	GHz
5	Output electrical clock amplitude	600(typical value)		mVpp
6	Clock rise time(OC-192)(20%~80%)	33.1	22.2	ps
7	Clock fall time(OC-192)(80%~20%)	33.7	23.9	ps
8	Output Jitter(10.3125Gbps)	1 (typical value)		ps
9	Clock frequency(10.3125Gbpsrate, divided by2/4)	5.156 / 2.578	5.156 / 2.578	GHz
10	Internal Loss of Signal Detect (LOS)	128 (overload)	5 (sensitivity)	mV
11	Power supply voltage (input voltage of external power supply)	5.5	4	V
12	Operating temperature	85	-40	℃
