Mini optical power meter built-in chassis custom channel
Outline
The U8201MINI optical power meter module of Guangzhou Uniwest adopts a 6PIN communication interface, uses a matching socket to communicate with a PC, and displays data and sets parameters through configuration software.
The UC8201MINI optical power meter module can be used for high-precision WD-division multiplexing DWDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other general optical fiber optical measurement applications. Compared with other models of power meters, UC8201MINI has the characteristics of compact shape, especially suitable for assembly into multi-channel optical power meter sampling systems.
Should
WDM, GFF, AWG, PLC device test
Insert loss, return loss measurement
Optical fiber sensor, optical fiber cable test
Polarization mode dispersion PMD and polarization dependent loss PDL measurement
Optical fiber, communication R&D laboratory test
Specification
| Product model | U8201MINI |
| Sensor Element | InGaAs |
| Wavelength Range | 850 ~ 1700 nm |
| Calibration wavelength | 850/980/1310/1490/1550/1610 nm |
| Power Range (dBm) | +7 ~ -70 dBm |
| Power sampling period(Rate) | 1 ms(1KHz) |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
| optical Input Interface | FC/PC or FC/APC |
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical |
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 5~ -50dBm) |
| Return Loss | ＞ 40 dB |
| Communication Interface | RS232 |
| Calibration period | 2 years |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -30 ~ +80℃ |
| Dimensions | 37 mm W, 25 mm H, 115 mm D |
| Weight | 0.5 kg |

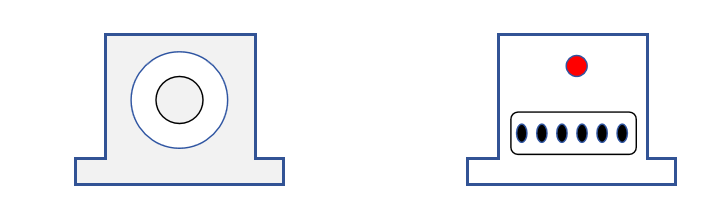

Module description
Front end Rear-end
