Broadband Light Source And Spectrometer Share Scanning System
System overview:
This system is a set of integrated single-point automatic test system developed for 2xn and 1xn optical switches. The system integrates single-point light source, optical switch, CP9810A and other test equipment. Combined with the process prompt and result judgment of the optical switch test software, the system is integrated, streamlined and anti-error, and the overall test efficiency of the product is effectively improved. The space of station equipment is compressed, the cleanliness of the station is improved, and the time cost of staff training is reduced.
Highlight introduction:
1. The test efficiency is improved, the product only needs to be connected once, reducing the number of wiring;
2. Reduce testing costs, reduce staff training time, and reduce equipment and personnel input;
3. Convenient site management, integrated equipment, less space, less jumper;
4. The system is error-proof, employees work according to prompts, operation items are less, and the system automatically calculates;
5. Comprehensive test parameters, including IL, RL, PDL, ISO and other optical switch products;
6. Test results grading, according to the actual production needs to define multiple product levels;
7. Test data traceability, data retention in the database and local, long-term traceability of records;
8. Combined with FIS system, paperless can be realized in the true sense.

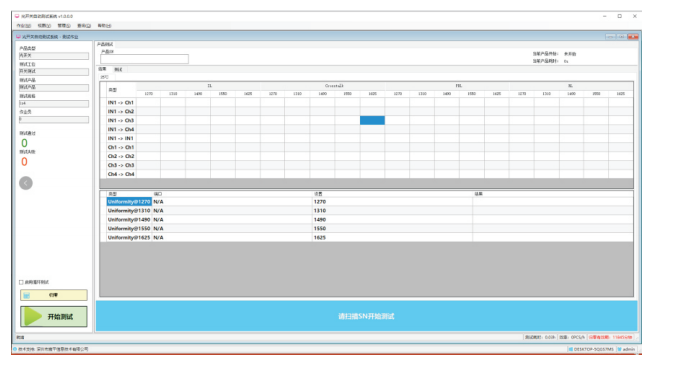

Test interface:
