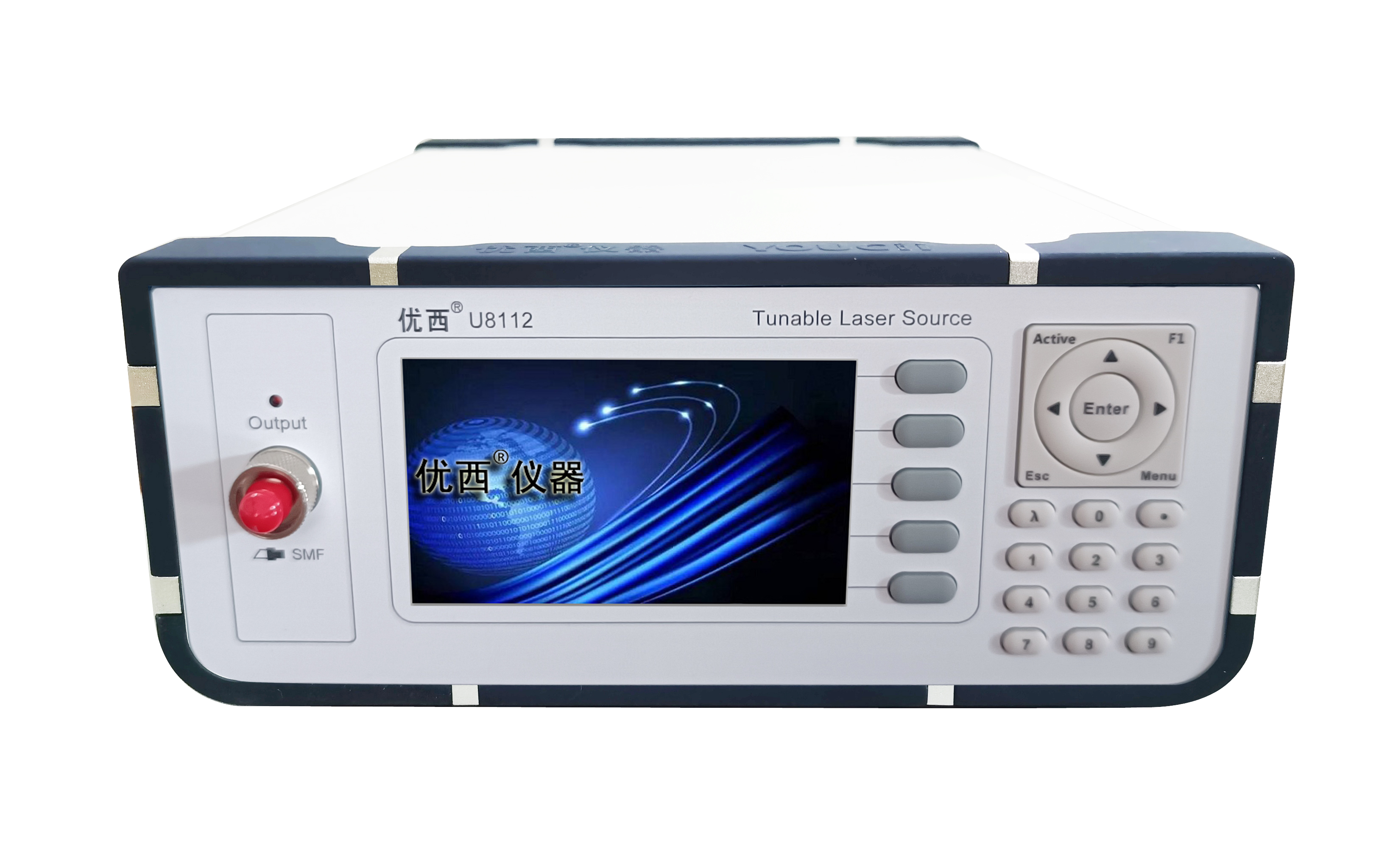

Benchtop Tunable Laser Light Source With High Output Power And Fast Start

Brand Name : YOUCii

Model Number : U8112

Place of Origin : CHINA

MOQ : 1

Price : Negotiate price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10pcs / month

Delivery Time : 10 work days

Packaging Details : Paper Box

Material : Metal

Dimension : 2U

Power Adjust Range (Option) : 25dB

Wavelength resolution : 1.0 pm

Tuning speed : ≤ 2 ms per step

Wavelength stability : ≤± 2 pm

Power stability : ≤ ± 0.01dB, (15min).

Contact Now

Benchtop Tunable Laser Light Source With High Output Power And Fast Start

Product characteristics

Adjustable output wavelength: The core feature of tunable laser light source is that its output wavelength can be continuously changed within a certain range. Depending on the product specifications, the wavelength tuning range can range from a few hundred nanometers to a few microns.
High precision: Tunable laser sources usually have high wavelength accuracy and resolution, which can meet the needs of precise spectral analysis.
Narrow line width: This type of light source has a narrow line width, usually less than 1MHz, which helps to improve the accuracy of spectral measurements.
Good power stability: The output optical power stability is good, which helps to ensure the accuracy of the experimental results.
Remote control: Some products support remote control, which is convenient for users to remote operation and monitoring.

Specification

Model # U8112
Band Option O C L CL
Wavelength Tuning range (nm) 1260~1360 1525~1568 1568~1610 1525~1610
Output Power ≥ 7dBm ≥ 13dBm ≥ 10dBm ≥ 7dBm
Power Adjust Range (Option) 25 dB
Wavelength resolution 1.0 pm
Absolute wavelength accuracy ± 10 pm, typ. < 5 pm
Relative wavelength accuracy ±5 pm, typ. ± 2 pm
Wavelength repeatability ± 2 pm, typ. ±1 pm
Wavelength stability ≤± 2 pm (24 hrs at constant temperature)
Tuning speed ≤ 2 ms per step
Power stability ≤ ± 0.01dB, (15min).
Power repeatability ± 0.05dB
Power linearity ± 0.3dB
Power flatness versus wavelength 0.3dB typ. 0.5dB max.
Side-mode Suppression ratio ≥ 35dB ≥ 45dB
Relative intensity noise < -135dB
Power AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max.
Storage temperature −40°C to +80°C
Operating temperature 0°C to +45°C
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0 kg

Application field

Tunable laser sources are used in a wide range of applications, including:

Optical fiber sensing and testing: Used in DWDM/AWG/PLC and ATM systems, optical fiber sensor testing, PMD and PDL measurement.
Fiber optics and Telecommunications research: plays an important role in fiber optics /Telcom R & D lab tests and Impact Field test systems.
Scientific research: In the fields of spectroscopy, photochemistry, medicine, biology, integrated optics, pollution monitoring, etc., tunable laser sources provide strong support for experimental research.

Product examples

There are a number of benchtop tunable laser light source products available on the market, such as the KG-TLS series, LUNA Phoenix 1400 and others. These products have different wavelength tuning ranges, output power, accuracy and stability characteristics, users can choose the right products according to specific needs.

In summary, the benchtop tunable laser source has a wide range of application prospects and market demand, and its characteristics of high precision, narrow line width and good power stability make it an important tool in spectral analysis and scientific research experiments.
