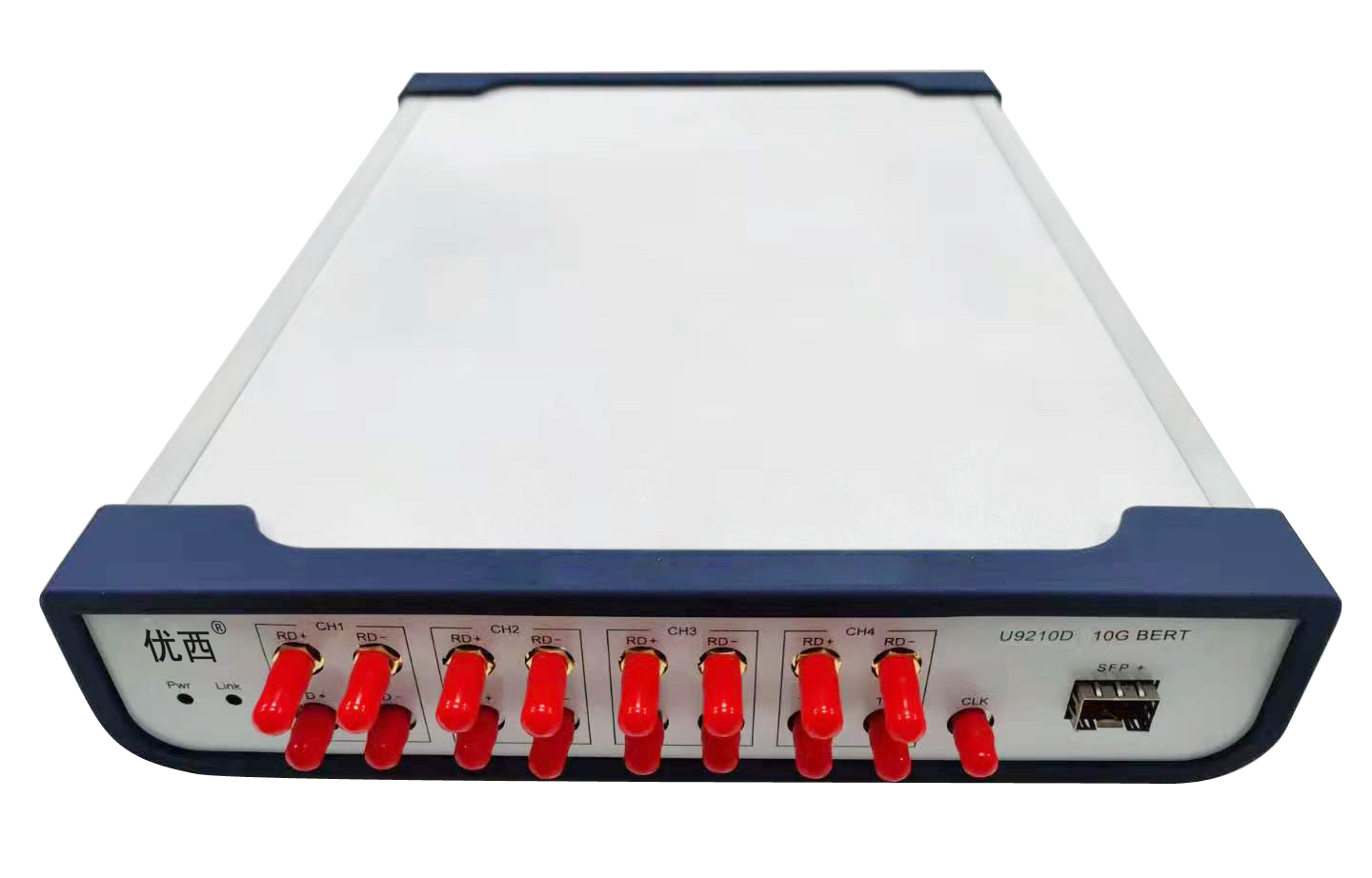

SFP Optical Port Channel 4 Electrical Port 1 Optical Port 10 Gbit/S Bit Error Meter

Brand Name : YOUCII

Model Number : U9210D

Certification : CU,IOS

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T

Supply Ability : 7 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Data rate : 0.622、1.25、2.5、5.0、9.953、10.00、10.3125、10.52、11.09、11.32、11.7

Code pattern : PRBS7、PRBS9、PRBS15、PRBS23、PRBS31

Pattern reversal : Supports signal inversion at the transmitting and receiving ends

Clock output : 156.25 MHz

Data signal input sensitivity : 50m Vpp

Signal differential output amplitude : 200~1000 mV

Contact Now

SFP Optical Port Channel 4 Electrical Port 1 Optical Port 10 Gbit/S Bit Error Meter

Basic performance characteristics:

1, our-channel parallel PG and ED; Single-ended clock output.

2, One SFP optical port channel.

3, PG and ED support rates ranging from 0.622 to 11.7 Gbps.

4, Supported code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.

5, Supports continuous bit error detection and periodic bit error monitoring.

6, Communication mode: USB HID (drive free) or USB-COM.

Specification

No. Argument min Model Max unit
1 Data rate 0.622 0.622,1.25,2.5,5.0,9.953,10.00,10.3125,10.52,11.09,11.32,11.7 11.7 Gbps
2 Number of channels 5(4Electrical port, 1 optical port, PG and ED supported)
3 Code pattern PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4 Rise and fall time (20% to 80%) 18 23 ps
5 Pattern reversal Supports signal inversion at the transmitting and receiving ends
6 Signal differential output amplitude 200 600 1000 mV
7 Data output jitter (RMS) 1.5(10.3125G) ps
8 Data input/output interface Differential, AC coupling, 50 ohm impedance, SMA
9 Clock output 100 156.25 156.25 MHz
10 Data signal input sensitivity 50 mVpp
11 Data output eye crosspoint 49 50 54 %
12 USB HID response time 10 ms
13 Operating temperature 10 25 50 °C
14 Operating voltage (AC) 180 220 250 V

The full rate error meter is an instrument used to measure the bit error rate in digital communication system. It can generate data streams of various rates and detect the number of error codes at the receiving end, thus evaluating the performance of the communication system.

Full-rate error detectors usually have multiple rate options and can simulate data transmission at different rates. It can produce a random stream of bits or a predefined test pattern to simulate data transmission in a real communication environment. At the receiving end, the error meter will detect and count the number of error codes, and display them in a certain format so that users can analyze the performance of the communication system.
